Geelong's rapid expansion since the 19th-century wool boom has transformed its volcanic plains into residential and industrial zones, often overlapping with former quarries and low-lying fill areas. Managing legacy waste sites and designing new engineered landfills here requires a deep understanding of the region's basalt-derived clays and shallow water tables. Our team applies landfill geotechnics to characterise these heterogeneous fills, assess leachate containment, and ensure long-term stability under the city's temperate climate. Before any capping or liner design, we integrate geotechnical drainage systems to control groundwater ingress and resistivity surveys to map buried waste boundaries—critical steps that save months of remediation later.
Landfill geotechnics in Geelong demands site-specific models—generic assumptions fail when basalt clays and historic fill interact.
Scope of work in Geelong
- Borehole logging with continuous core recovery for lithological profiling
- Triaxial and direct shear testing on compacted clay liners
- Gas monitoring probes for methane and CO₂ risk assessment
- Long-term settlement analysis using consolidation theory
Typical technical challenges in Geelong
The underlying Newer Volcanics basalt in Geelong creates irregular bedrock profiles, often with pockets of soft alluvial clay and peat that trigger differential settlement under waste loads. Shallow groundwater, perched on the basalt surface, rises within 2–4 m of the surface after heavy winter rains, increasing leachate head and liner leakage risk. Without targeted landfill geotechnics, these conditions lead to liner rupture, uncontrolled gas migration, and slope instability in side-slope fills. We quantify these risks using limit-equilibrium slope stability software and NCEER-based liquefaction screening for saturated ash layers.
Our services
Our Geelong landfill geotechnics services cover the full project lifecycle—from pre-feasibility assessment to post-closure monitoring.

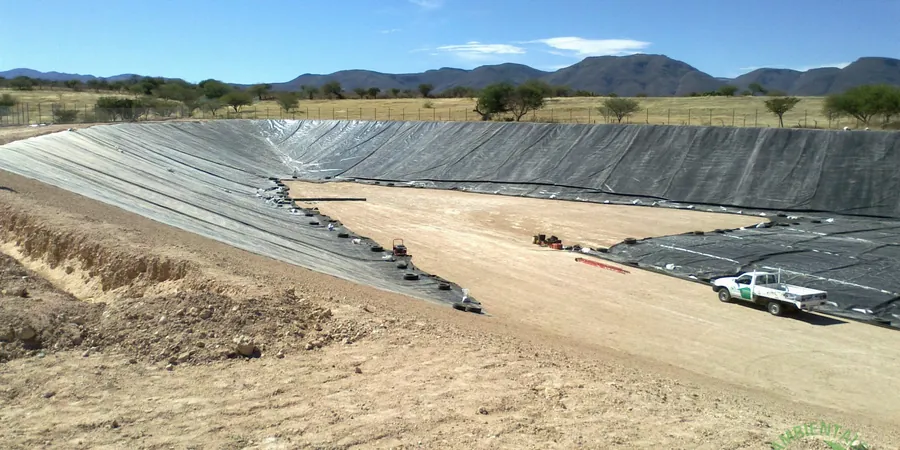

Waste Characterisation and Liner Design
Laboratory classification of waste types and contaminated soils, followed by compacted clay or geosynthetic liner design tailored to Geelong's basaltic subgrade and rainfall patterns.
Slope Stability and Settlement Analysis
Limit-equilibrium and finite-element modelling for waste slopes, foundation settlement under load, and long-term creep behaviour using site-specific shear strength parameters.
Gas and Leachate Management Systems
Design of passive/active gas venting networks, leachate collection drains, and hydraulic barrier verification to meet EPA Victoria requirements for landfill geotechnics.
Frequently asked questions
Why is landfill geotechnics different from standard geotechnical work for Geelong sites?
Landfill geotechnics addresses unique challenges like long-term settlement from waste decomposition, gas generation (methane, CO₂), and leachate containment—none of which apply to typical building foundations. In Geelong's basalt terrain, the irregular bedrock and high winter rainfall amplify these factors, requiring specialised liner systems and gas barriers.
What is the typical cost range for a landfill geotechnical investigation in Geelong?
A full investigation including boreholes, laboratory testing, and reporting typically ranges between AU$2,900 and AU$11,340, depending on site size, number of test pits, and required testing suite. Complex sites with deep fill or contamination push toward the upper end.
How deep do boreholes need to be for landfill geotechnics in Geelong?
Boreholes must extend through the waste mass and at least 3–5 m into natural ground to confirm bearing capacity and groundwater conditions. In Geelong, reaching the basalt bedrock often requires depths of 8–15 m, depending on the overlying fill thickness and local alluvial sequences.
What testing is mandatory for a landfill liner design under AS 1726?
Mandatory tests include hydraulic conductivity (AS 1289.6.7.2), compaction characteristics (AS 1289.5.1.1), and shear strength (UU triaxial). We also recommend Atterberg limits and particle size distribution to verify the liner material meets plasticity and fines content requirements. AS 4678 adds specific stability checks for side-slope liners.
Can you retrofit a landfill gas system on an existing Geelong site?
Yes, retrofitting is feasible using vertical gas extraction wells drilled through the waste cap, connected to a passive or active vacuum system. We first conduct a gas monitoring survey to map methane hotspots, then design extraction rates to maintain subsurface pressure below flammable limits. This is common for older Geelong landfills now being redeveloped.
