Collapsible soils present a distinct hazard in Geelong, particularly in the western suburbs where alluvial and aeolian deposits predominate. Our evaluation protocol follows AS 1726-2017 for site classification and AS 1289.7.1 for direct collapse potential measurement. In Geelong, seasonal rainfall cycles and irrigation practices can trigger sudden settlement when metastable soil structures become saturated. We combine standard oedometer testing with double-ring infiltration trials to quantify collapse strain under representative loads. Before field testing, we often run a georadar survey to map subsurface anomalies, and later integrate results with consolidation analysis to predict long-term deformation under service loads.
Collapse strain exceeding 2% under a 200 kPa load classifies the soil as collapsible per AS 1726. Our testing catches this before construction.
Scope of work in Geelong
- In-situ density and moisture profiling via nuclear gauge and sand cone tests
- Double-oedometer collapse tests at 50 kPa and 200 kPa seating loads
- Particle size distribution to identify gap-graded fabrics prone to collapse
Typical technical challenges in Geelong
The most severe collapsible soil hazard in Geelong occurs in the Newtown and Belmont areas, where deep sandy loams overlie clay aquitards. When these soils dry during summer, capillary suction creates a metastable honeycomb structure. A sudden wetting event — burst water main, prolonged rain, or garden irrigation — can trigger collapse settlements of 50–150 mm within hours. We have documented cases where slab-on-ground homes suffered differential movement exceeding 75 mm across a 10 m span. Our risk assessment includes Monte Carlo simulations of wetting fronts to estimate probable collapse depths for each site.
Our services
Our collapsible soil evaluation package in Geelong covers both field and laboratory phases. We tailor the scope to your project type and site conditions.
Field Collapse Assessment & Sampling

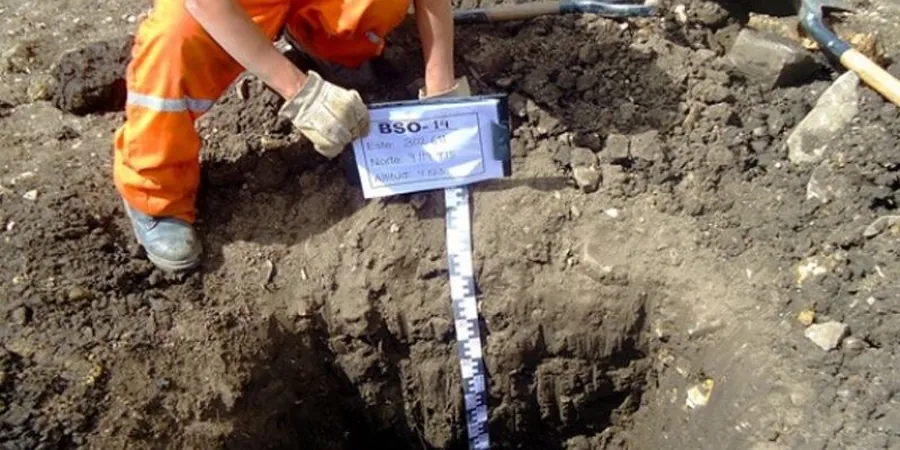

We execute test pits and boreholes at critical locations across your Geelong site. In-situ density, moisture, and suction measurements are taken at 0.5 m intervals. Undisturbed block samples are extracted for laboratory oedometer collapse testing.
Laboratory Collapse Potential Determination
Using double-oedometer and single-oedometer methods, we measure collapse strain at stresses from 25 kPa to 400 kPa. Results are reported with collapse potential index (CPI) and classification per AS 1289.7.1. We also run index tests (Atterberg limits, particle size) to identify collapse-prone soils.
Frequently asked questions
What makes Geelong soils prone to collapse?
Geelong's Quaternary alluvial and aeolian deposits contain loose silt and fine sand with low clay content. These soils develop a metastable fabric held by capillary tension. When saturated, the structure collapses, causing sudden settlement.
How is collapsible soil evaluation different from routine geotechnical testing?
Standard compaction or bearing capacity tests do not detect collapse potential. Our evaluation specifically measures collapse strain under wetting using oedometer trials at controlled moisture levels. This test is not part of a typical site classification.
What is the typical cost range for collapsible soil evaluation in Geelong?
For a standard residential block with two test pits and full laboratory suite, the cost ranges from AU$1,110 to AU$3,440. Larger commercial sites with deeper boreholes and multiple collapse tests will be at the higher end.
Can collapsible soil be treated or stabilized?
Yes. Pre-wetting, dynamic compaction, or deep soil mixing can reduce collapse potential. In Geelong, we often recommend controlled wetting followed by surcharge loading for shallow deposits. For deeper zones, stone columns or ground improvement via vibro compaction are effective.
Do I need a collapsible soil evaluation for a small extension or shed?
If your Geelong site has known collapsible layers, even a small structure can suffer differential movement. We recommend at least a desktop study and two collapse tests for any slab-on-ground extension. The cost is modest compared to future repair costs.
